Purlin Roll Forming Machine Professional Construction Automatic z purlin roll forming machine

Name: Purlin Roll Forming Machine Professional Construction Automatic z purlin roll forming machine
Brand: WADJAY
Price: 1 USD

China Purlin Roll Forming Machine Professional Construction Automatic z purlin roll forming machine wholesale

Brand Name : WADJAY

Model Number : Purlin Roll Forming Machine

Certification : CE,ISO 9001

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10 sets / month

Delivery Time : 15 working days

Packaging Details : wooden case

Condition : New

Work Pressure : 195 Mpa---350 Mpa

Production Capacity : 0-12 m/min

Dimension(L*W*H) : About 6.8*1.6*1.25 m (L*W*H)

Weight : about 3.5T

Suitable Material : Q235 or similar

Contact Now

Purlin Roll Forming Machine Professional Construction Automatic z purlin roll forming machine

Type:Steel Frame & Purlin Machine
Voltage:3 kw
Power:380V 50Hz 3phases
Certification:ISO/CE/SGS

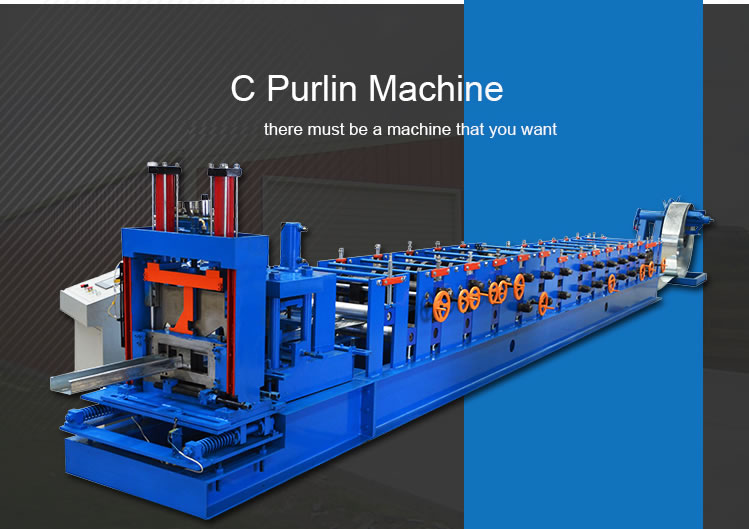

Name:Professional Construction Automatic C Purlin Cold Roll Forming Machine
Feature:high production speed
Control System:fully automatic
Operation Language:Chinese/English/Spanish
Raw Material:PPGI/Galvanized Sheet
Color of Machine:blue, gray, or your required color
Life Time:at least 5 years
Warranty:1 Year

purlin roll forming machine
z purlin roll forming machine
cz purlin roll forming machine
c section roll forming machine
c channel roll forming machine
z c roll forming machines

Name	Professional Construction Automatic C Purlin Cold Roll Forming Machine
Suitable Material	Colored or galvanized steel coil, HRB60 or equivalent
Thickness Range	0.3-0.8 mm
Coil Width Range	914, 1000, 1220 or 1250 mm. According to your actual drawing.
Electric Power	380V, 50 Hz, 3 phase or according to your need.
Dimension	About 7.21.31.1m(LWH), as per the drawing
Cutting	Automatically stop and cutting when it comes to the set length.
Length of the Sheet	You can set the length according to your need. It is controlled by PLC length accuracy: ±1mm.

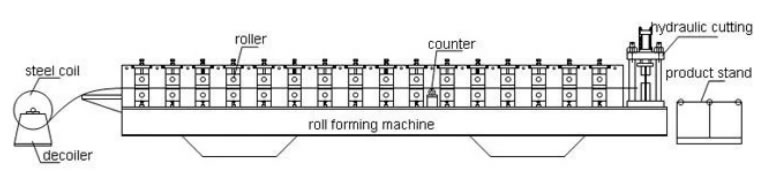

Working Flow

Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand

Purlin Roll Forming Machine Professional Construction Automatic z purlin roll forming machine

Details Show

——Product Details——

Purlin Roll Forming Machine Professional Construction Automatic z purlin roll forming machine

uncoiler
Loading capacity	5T
Inner diameter	470-530mm
Steel coil width	914, 1000, 1220, 1250 mm. According to your actual drawing.
Working speed	0-15m/min, adjustable

feeding table

It is used to control the width and position of the steel sheet.

The sheet is guided into the machine with correct position,

to make sure the panel is neat and parallel.

main frame
Material	350 H steel
Feature	more table, no shaking

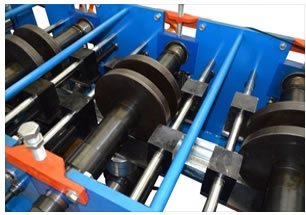

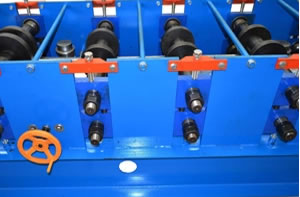

forming rollers

Material

High grade 45# steel.

Roller stations

11-16 stations.

According to your actual drawing

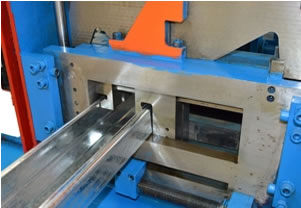

cutting system
Material of blade	Cr12MOV, much better than normal Cr12 material
Hydraulic power	3KW

control cabinet

Suitable power

380V, 50Hz, 3phase

or according to your need.

Feature

The whole process is automatically controlled by the computer.

In this way, you can ensure the accuracy and easy work.

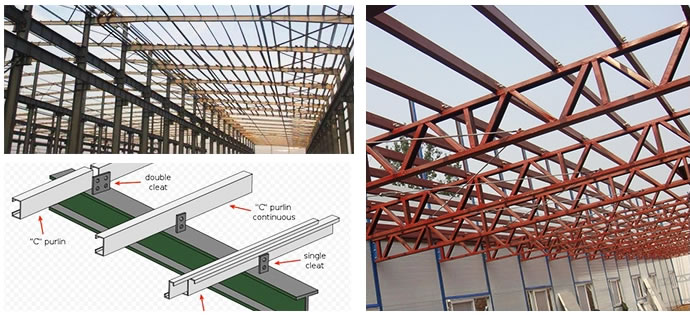

Product Applications

Purlin Roll Forming Machine Professional Construction Automatic z purlin roll forming machine
